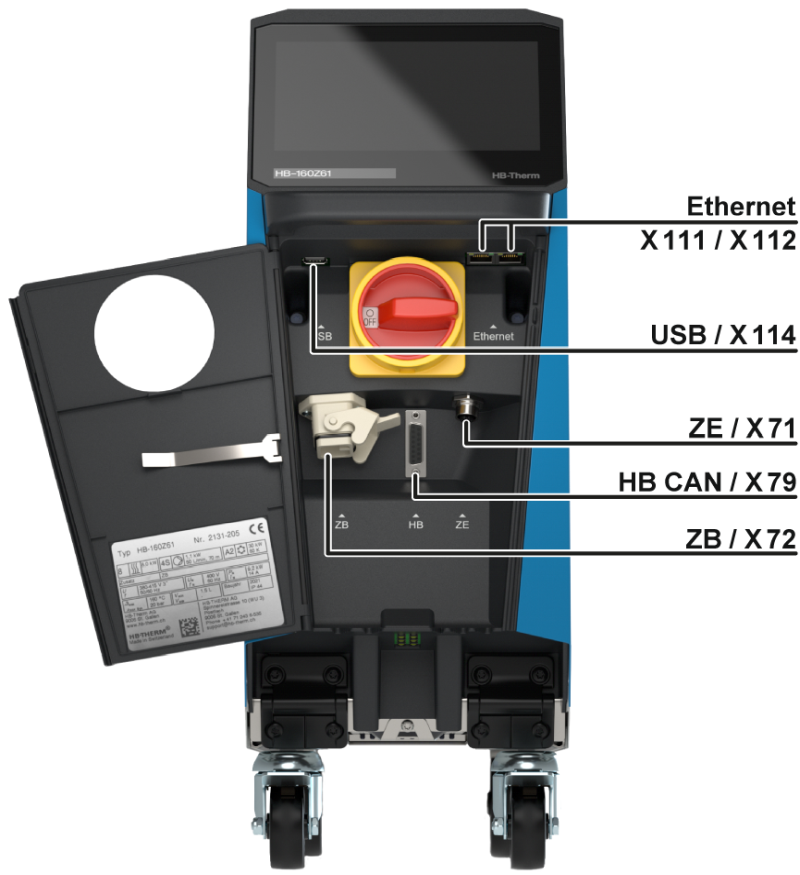

The interface is the OPC UA server. A client is required for communication. This can be implemented in PC software (e.g. OPC UA Browser) or a machine control. Data is exchanged either directly between the machine control and the Thermo-6 temperature control unit or via the interface server. Gate-6

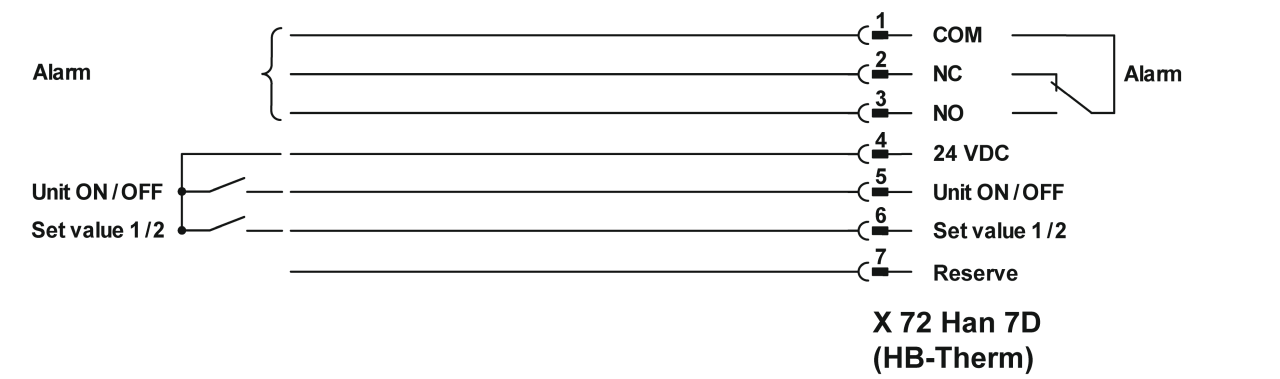

Functions of the potential-free changeover contact:
Read out the unit's alarm status
Switch on and off the unit
Switch between set values (Set temperature 1, Set temperature 2)
Cable pin-assignment
function
Contact
maximum load
unit I/O
A
close (signal edge)
Off
open (signal edge)
set temperature
2
close (signal edge)
1
open (signal edge)
alarm contact
-
-
250 VAC, 4 A
