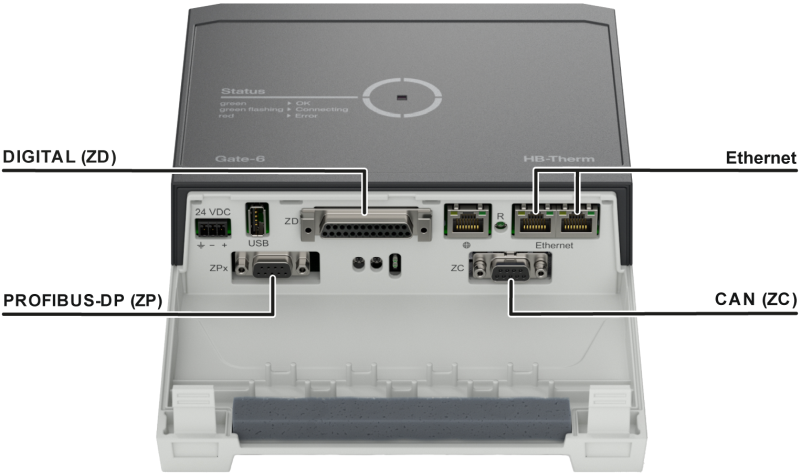

Data is exchanged between the machine control and the Thermo-6 temperature control unit via the interface server. Gate-6 To control system the temperature control unit via an external controller, click here...

Ethernet

  • Ethernet interface OPC UA (EUROMAP 82.1 Release 1.01 / OPC 40082-1)for connecting Thermo-6 temperature control units and for connection to the machine

  • Switch with 2 sockets RJ-45

NOTE!

Shielded Category 5 or higher cable be used for all Ethernet connections. These cable are available from standard retailers.

DIGITAL (ZD)

  • Serial data interface 20 mA, RS-232, RS-422/485 (Billion, Bühler, Dr. Boy, Engel, Ferromatik Milacron, Haitian, KraussMaffei, Negri Bossi, SPI (Fanuc, etc.), Stork, Sumitomo Demag, Wittmann Battenfeld, Zhafir)

  • 1 socket Sub-D 25 pin (female)

  • Interface cables can be found in the accessories catalogue

Cable pin-assignment

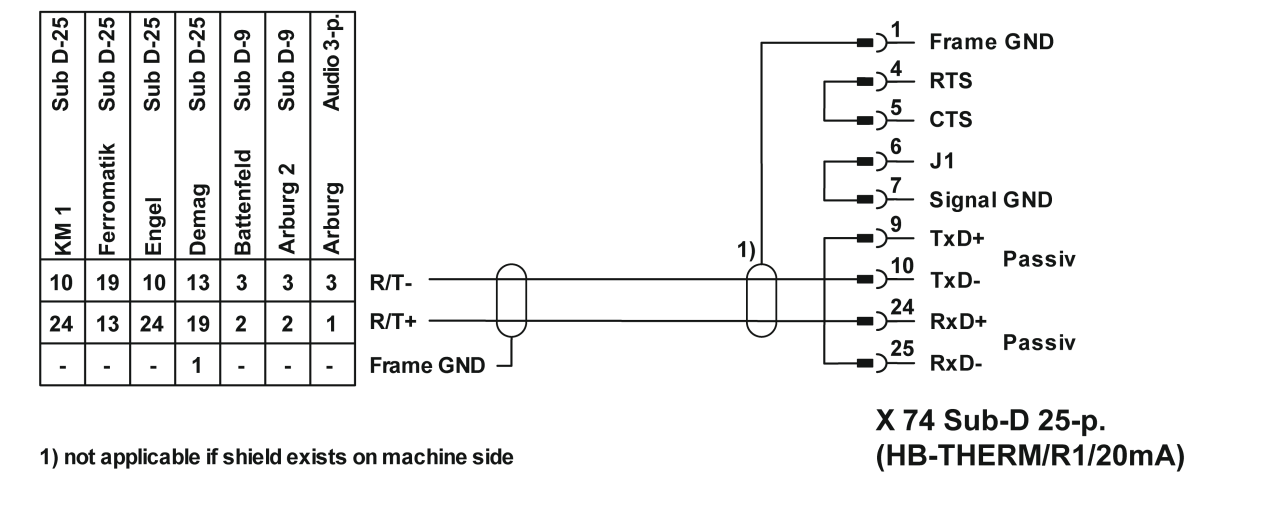

20 mA (current loop)

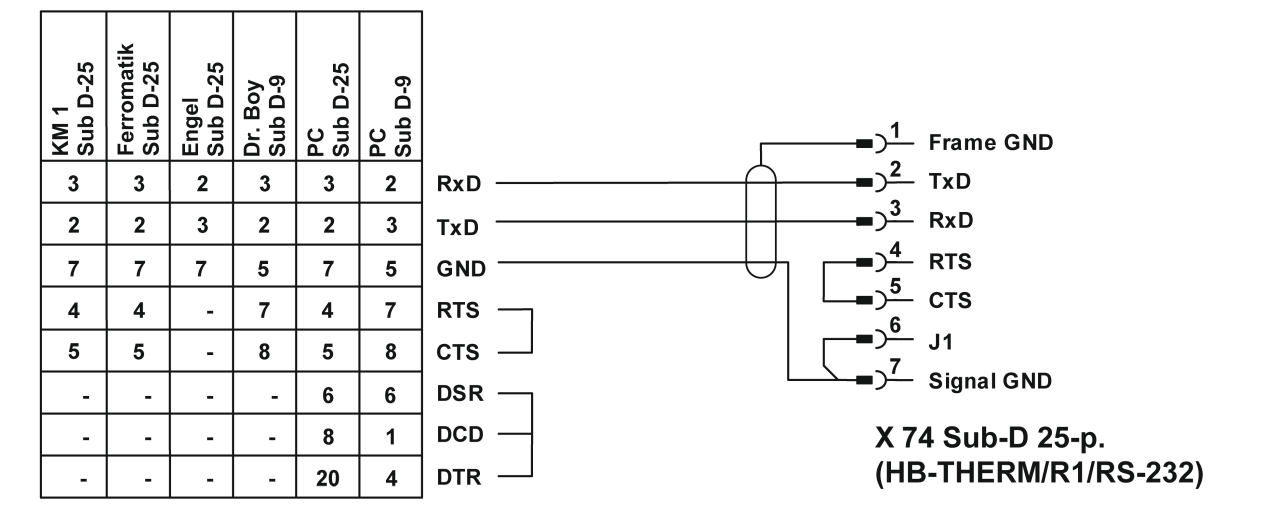

RS-232

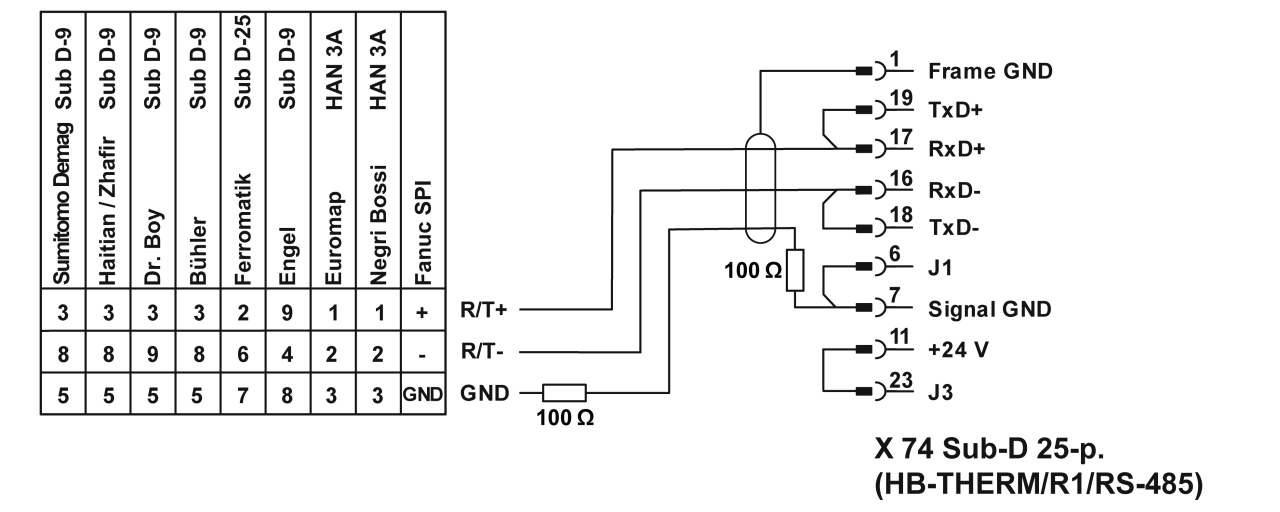

RS-485

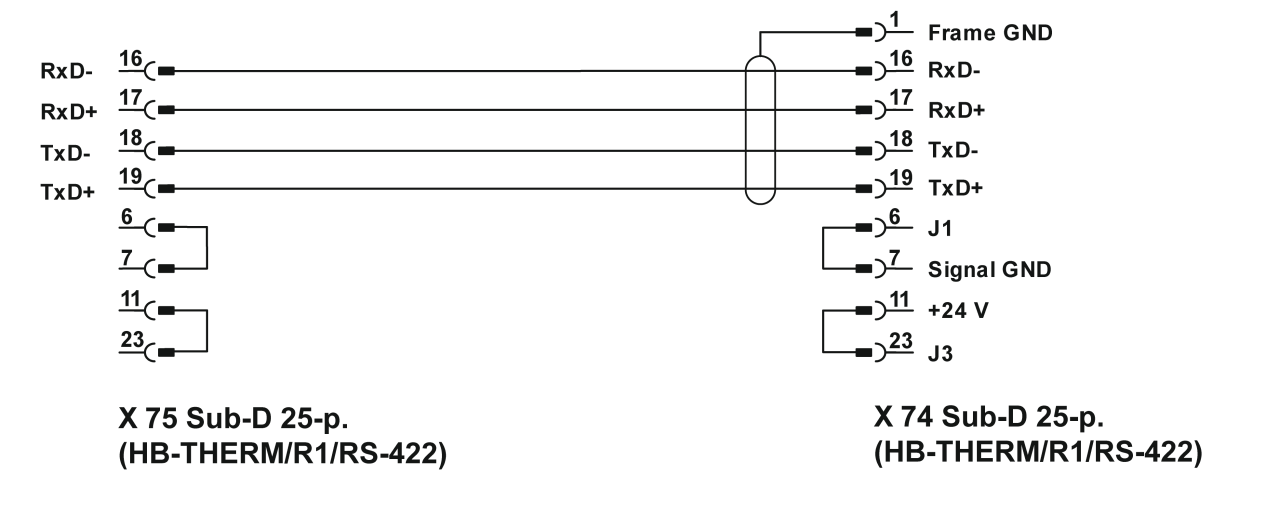

RS-422 (jumper cable)

CAN (ZC)

  • Serial data interface CAN-Bus (Sumitomo Demag), CANopen (EUROMAP 66; Netstal, etc.)
  • 1 socket Sub-D 9 pin (female)
  • Interface cables can be found in the accessories catalogue

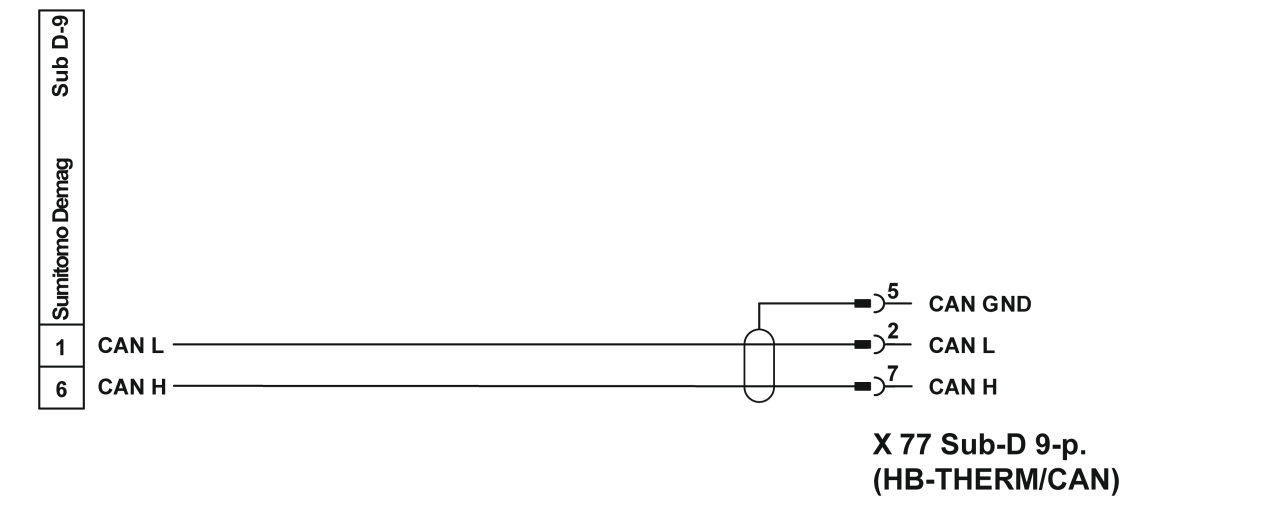

Cable pin-assignment

Adapter (only for Demag machines, O/ID T22590)

  • Demag: unit 1 with address 13
  • Netstal: unit 1 with address 31
