Purpose

  • T28584: printed circuit board replacement CAN
  • T29372: Interface upgrade CAN

Qualification

Qualified electrical personnel

Material

Pos.DesignationArticleT28584T29372
01

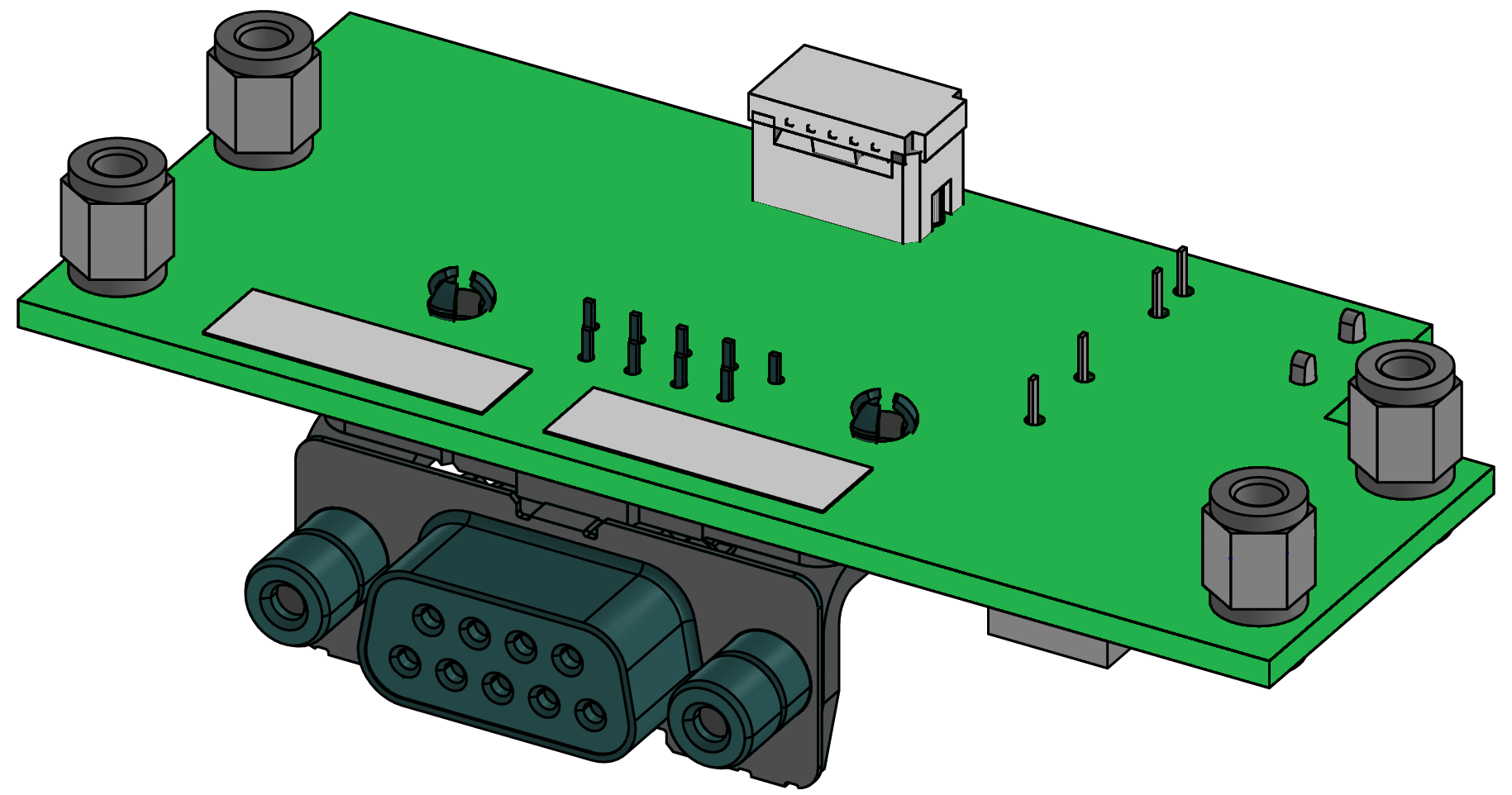

printed circuit board ZC-61

T2858411
02

screw M2,5x4-Torx

B19893385-4
03nameplateT19277-2

Required material

  • Torx screwdriver size 10
  • Torx screwdriver size 5

Procedure

ATTENTION!

Working with the unit requires knowledge of the safety instructions and quick guide. That's why:

Read the safety instructions and quick guide carefully before starting any work. The basic requirement for safe work is compliance with all safety instructions and careful action by qualified qualified personnel to prevent accidents involving personal injury and property damage.

Remove cover

  • Cable cover
    • Hold down the fastening tabs and lift the cable cover upwards (Fig. → ①).
  • Disconnecting connections on the Gate-6
    • Disconnect all control cables and the power supply on the Gate-6.
  • Housing cover
    • Remove the fastening screws (3x) on the back of the Gate-6 (Fig. → ②)
    • Press the housing cover together sideways until you hear a click (Fig. → ③). Then remove the cover.

Replace or retrofit components

  • Detach plug connections on the GAT-61 control system
    • 26-pin flat cable → slot X104
    • Grounding cable → X150 slot
    • Antenna cable (bottom) → X125 slot

  • Remove the GAT-61 control system
    • Remove the GAT-61 control system including the heatsink from the housing
    • While doing so, push the housing apart to release the mounting straps.

  • Remove the GAT-61 control system mounting screws (10x).

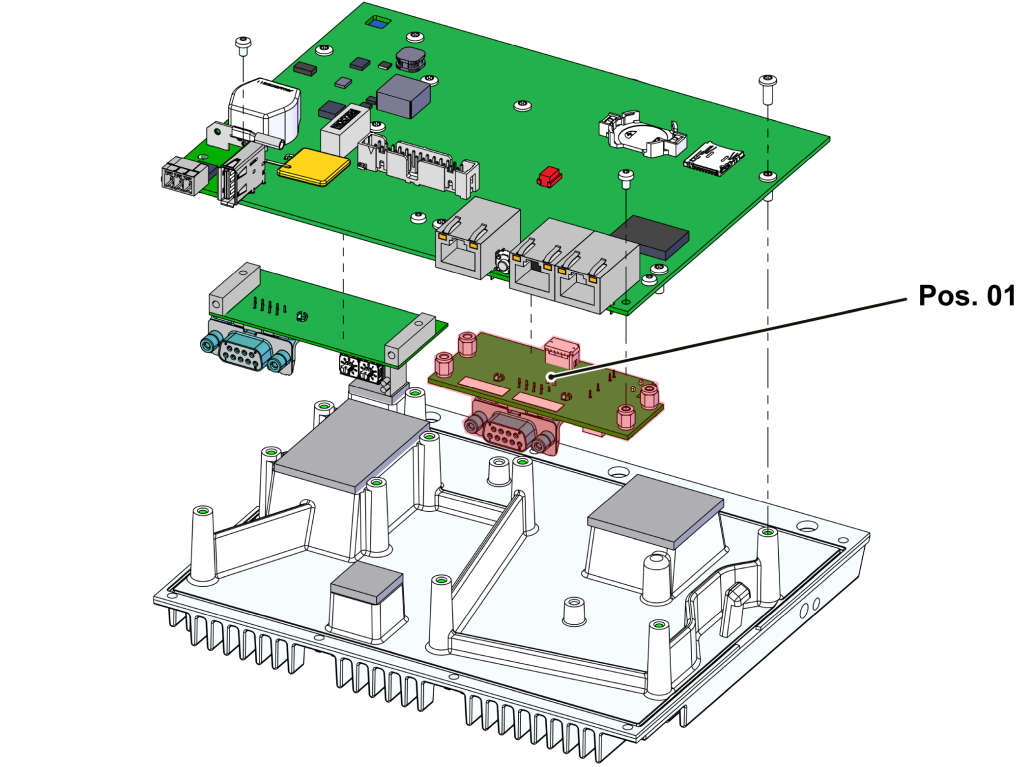

  • Replace or install the CAN printed circuit board on the GAT-61 control system Pos. 01).

  • Use GAT-61 control system
    • Put the GAT-61 control system back on the heatsink and fix the mounting screws (10x).
    • Insert the GAT-61 control system, including the heatsink, into the housing.
    • Make sure that the heatsink is locked in place on both sides.
  • Reconnect plug connections
    • 26-pin flat cable → slot X104
    • Grounding cable → X150 slot
    • Antenna cable (bottom) → X125 slot

Install cover

  • Put on the housing cover and press on from above and from the side until you hear a click.
  • Attach the fixing screws to the back of the Gate-6.
  • Stick the type plate (T19277) on the back of the Gate-6 and in the quick guide (O8406-X).

Check function

  • Check communication via the interface in accordance with the procedure in the quick guide.
  • Put on the cable cover and press down until you hear a click.
