Replacing the filling pump SAP 20 bar, 120 VAC (M 2)

qualification

Qualified personnel

Material

Pos.DesignationT28645-1T28645-2T29315
01

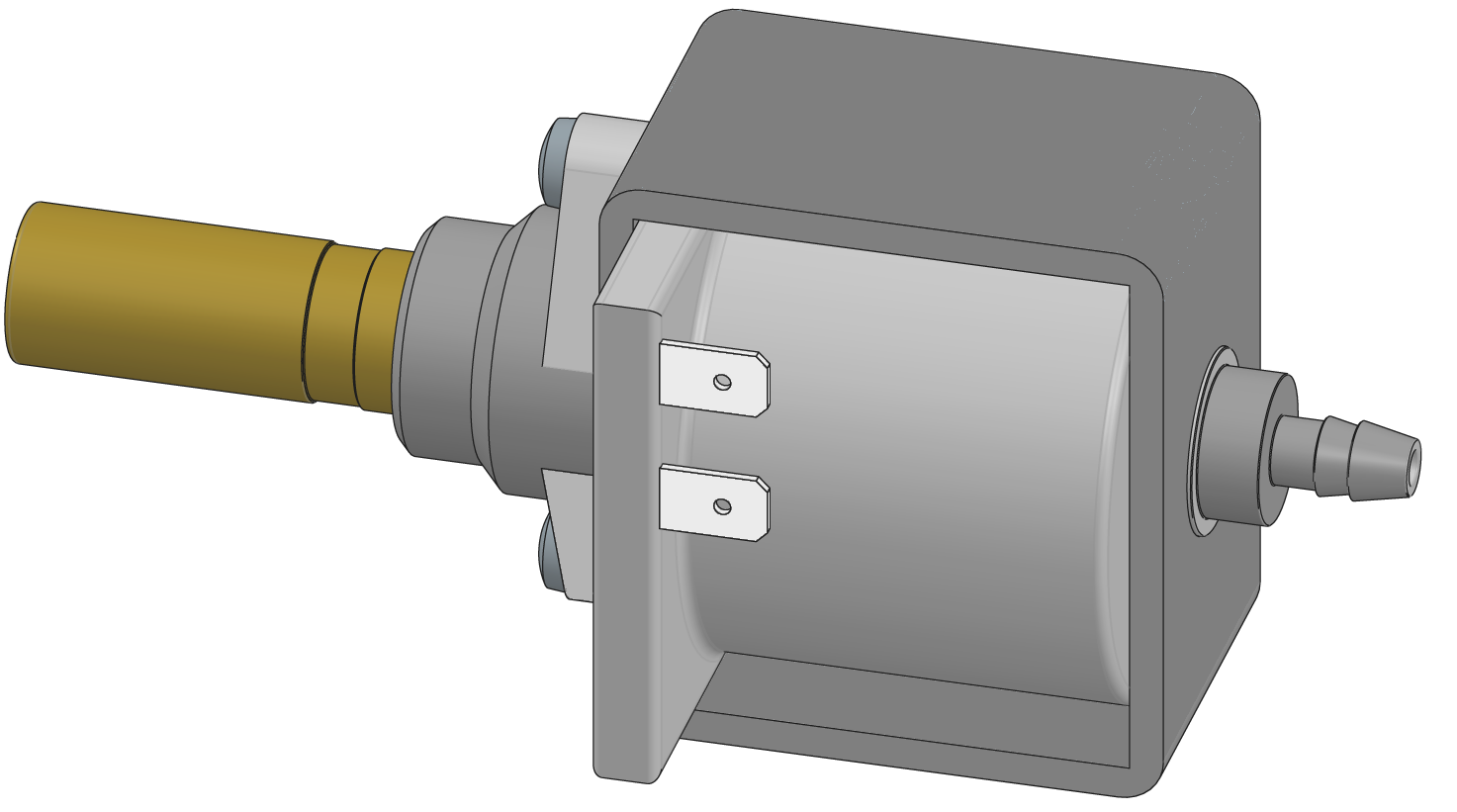

filling pump SAP 20 bar, 120 VAC

1--
01

filling pump SAP 20 bar, 120 VAC

-1-
01

filling pump SAP 20 bar, 120 VAC

--1

Required material

  • Torx screwdriver size 20
  • slotted screwdriver

procedure

ATTENTION!

Working with the unit requires knowledge of the safety instructions and quick guide. That's why:

Read the safety instructions and quick guide carefully before starting any work. The basic requirement for safe work is compliance with all safety instructions and careful action by qualified qualified personnel to prevent accidents involving personal injury and property damage.

Cooling / emptying

  • On the basic screen, tap the function button ().
  • On the basic screen, tap the function button ().
    • The unit cools down and evacuation the mold before switching it off.

Check pressure / switch off

  • Select [Display] > [Actual Values] > [System Pressure].
    • The system pressure must display 0.0 (±0.1) bar.
  • The pressure shown by the pressure gauge must be 0.0 (+0.3) bar.

  • Switch off the main switch (QS 1), pull out the mains-connector.
  • Remove covers from the unit (→ Open unit).

Replace spare part

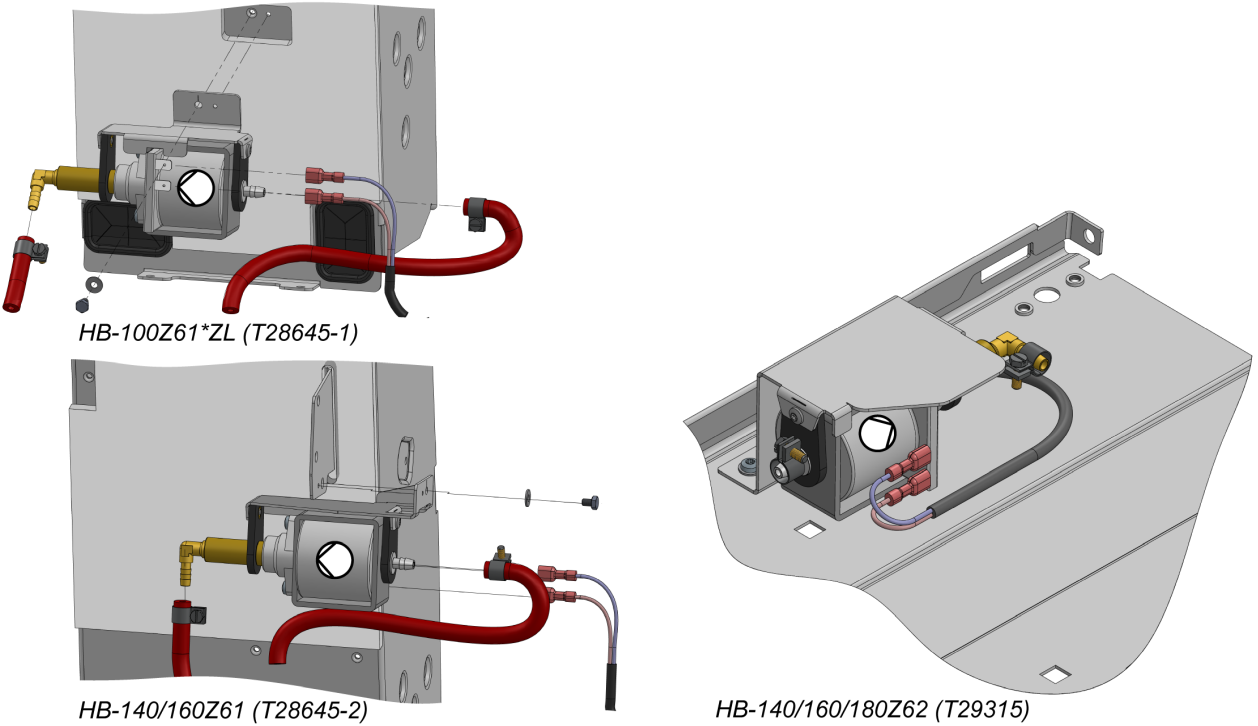

  • Remove the mounting screw on the filling pump with bracket.
  • Remove the connection cable from the filling pump.
  • Release the hose clamps and remove the silicone hose lines from the filling pump.

NOTE!

Plug-in plugs and silicone hose lines must be clean and free from contaminants. Damaged hose lines must be replaced if necessary (available as an option).

  • Install silicone hose lines on the new filling pump.
  • Connect the connection cable to the filling pump.
  • Secure the filling pump with bracket to the appropriate position with the screw and washer.

Check tightness / function

  • Connect the mains-connector and switch on the main switch (QS 1).
  • Switch on the unit using the I/O button (), check the tightness and function of the unit.

Switch off / install covers

  • Switch off the unit using the I/O button ().
    • The unit switches off and, if necessary, is cooled and depressurised.
  • Switch off the main switch (QS 1).
  • Re-attach covers from the unit (→ Open unit).
