purpose

Retrofitting the collection container for units with 'mold emptying with compressed air'

qualification

Qualified personnel

Material

Pos.DesignationarticleT29586
01

Screw-in angle 1/4 - 1/4 Msv

T233571
02

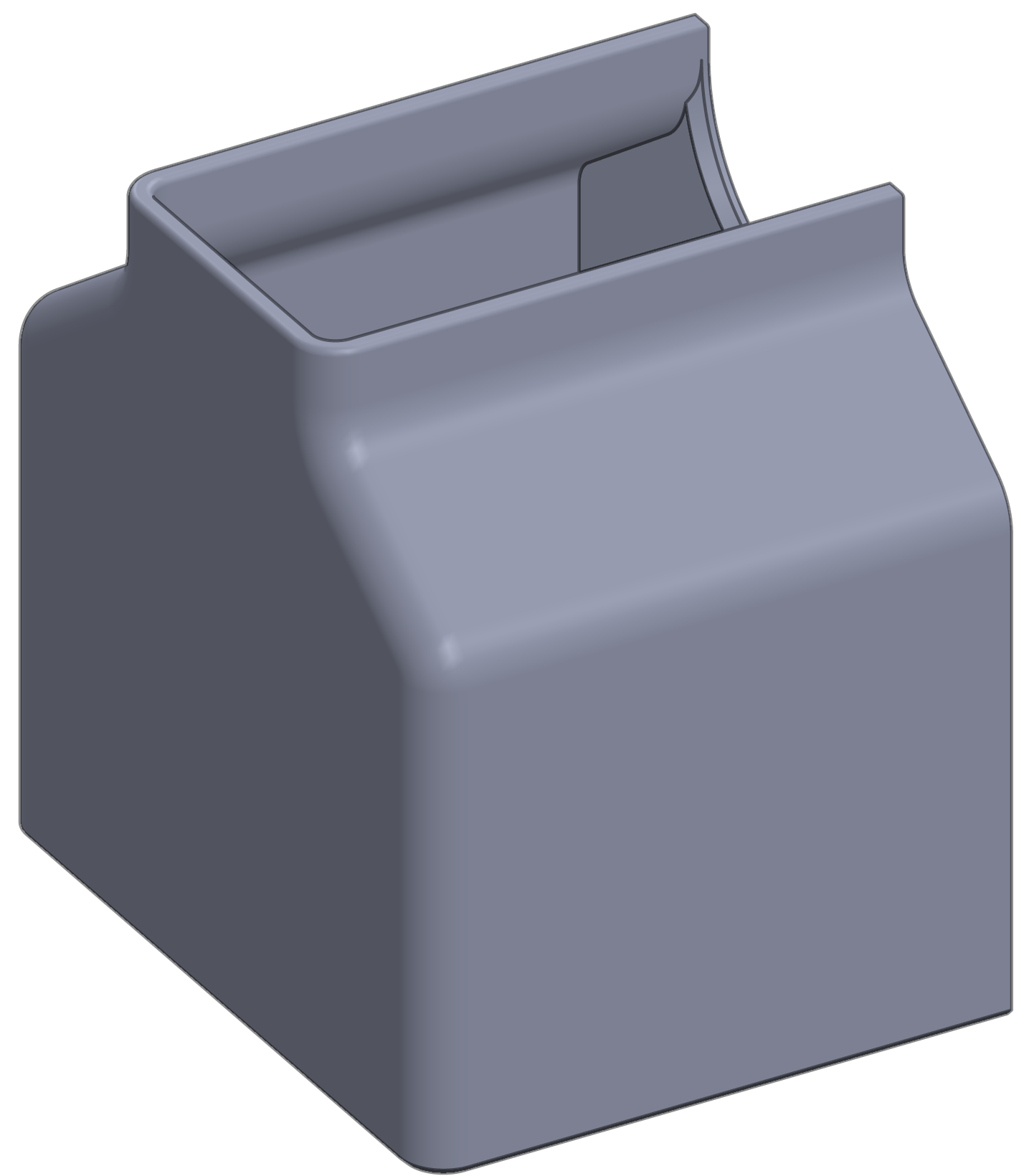

collection container 50x44x50 PET

T295841

Required material

  • Open-end wrench
  • Sealant, if necessary

procedure

ATTENTION!

Working with the unit requires knowledge of the safety instructions and quick guide. That's why:

Read the safety instructions and quick guide carefully before starting any work. The basic requirement for safe work is compliance with all safety instructions and careful action by qualified qualified personnel to prevent accidents involving personal injury and property damage.

cooling / switch off

  • On the basic screen, tap the function button ().
    • The unit cools down until the temperature is lower than the cooling temperature. The unit then switches off.

  • Switch off the main switch (QS 1).

Retrofit

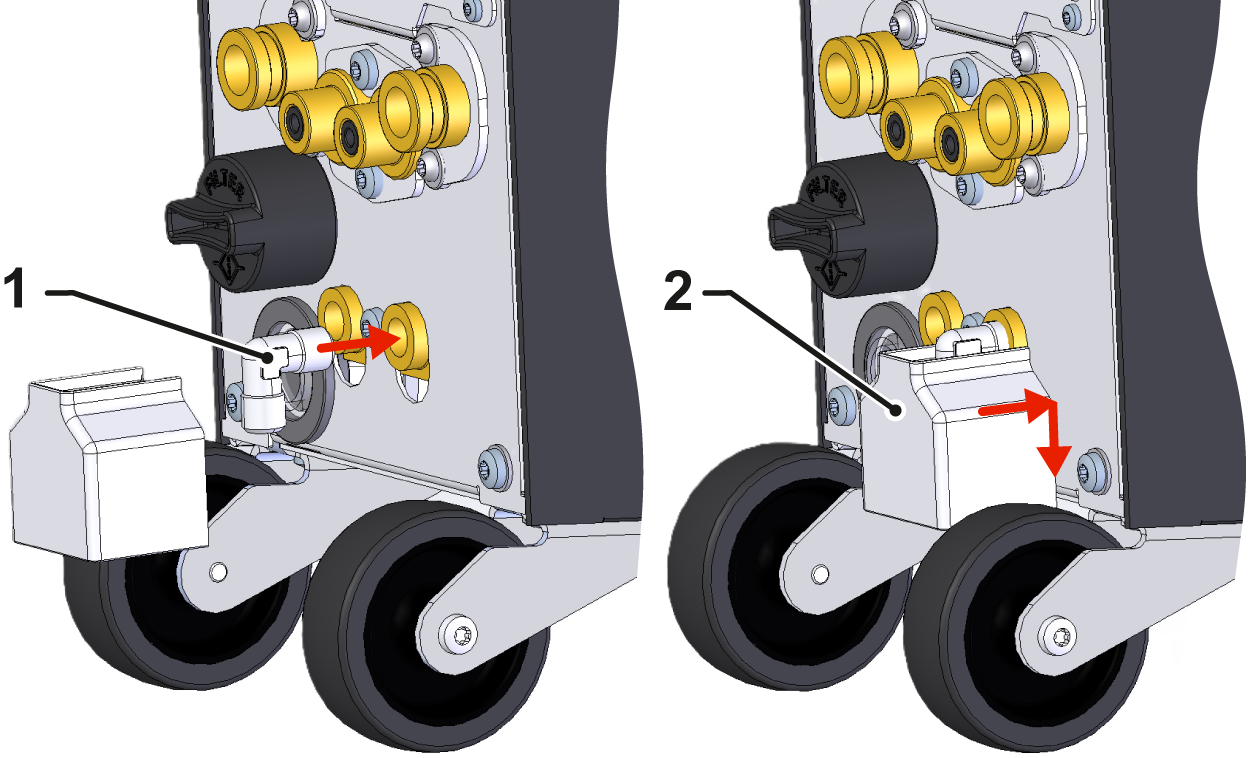

  • Install the screw-in angle (①)
    • Screw the screw-in angle into the “Air Out” connection on the back of the device and adjust as shown. The opening must point downwards.
    • If necessary, seal the thread with sealing tape or liquid thread sealant.
  • Install collection container (②)
    • Collection container below the screw-in angle and hook it into the recess in the back wall of the appliance.

Check function

  • Connect the mains-connector and switch on the main switch (QS 1).
  • Switch on the unit using the I/O button (), check the tightness and function of the unit.
  • Carry out Mould evacuation with compressed air
    • Check whether the water is collected in the container at the end of drain.

cooling / switch off

  • Switch off the unit using the I/O button ().
    • The unit switches off and, if necessary, is cooled and depressurised.
  • Switch off the main switch (QS 1).
