NOTE!

Depending on the product, the system connections are screwed or plugged in. If the recommended hose connection cannot be connected to the consumer, the cross-sectional area must be reduced at the consumer. In order to achieve the lowest possible pressure losses, the reduction in bore must not be carried out on the unit.

The connections and most important components on the back of the device are described as follows:

A


OUT

Main line

B

IN

Return line

C

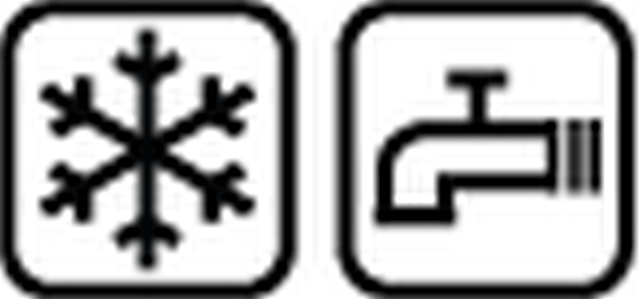

Cooling water inlet

D

Cooling water outlet

5

pressure indication

3.1

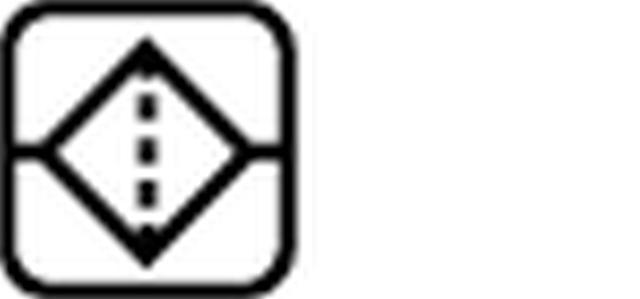

Filter return line

3

Cooling water filter

E

S1

System water inlet *

F

S2

System water outlet *

J

AIR IN

Compressed air inlet (ZG)

K

AIR OUT

Compressed air outlet ** (ZG)

N

-Mains connection cable

* The connection can only be used if you have switched to separate connections for system water (→ click here).
** The connection can only be used if Mould evacuation with compressed air is set to this outlet (→ click here).

Technical data

type

HB-100Z61/62

HB-140Z61/62

HB-160Z61/62

Temperature max.

100 °C

140 °C

160 °C

Connection: Main line, Return line

thread

G3/4



Resistance
(including hydraulic circuit)

20 bar, 120 °C

20 bar, 160 °C

20 bar, 180 °C

Connection: cooling water

Pressure

2–5 bar

thread

G3/8

Resistance

10 bar, 100 °C

Connection: separate system water

Pressure

2–5 bar

thread

G1/4

Resistance

10 bar, 100 °C

Connection: compressed air (ZG)

Pressure

2–8 bar *

thread

G1/4

Resistance

10 bar, 100 °C

* Mould emptying is more efficient with higher compressed air
