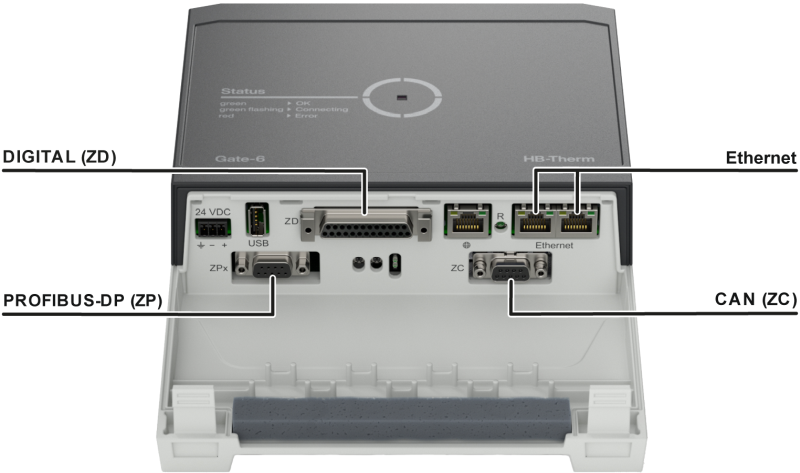

Gate-6 interfaces

Ethernet

With the Thermo-6 temperature control units, data is exchanged with the machine controller via the interface server. Gate-6

• Ethernet interface OPC UA (EUROMAP 82.1 Release 1.01 / OPC 40082-1) is used to connection Thermo-6 temperature control units

• Connection to Gate-6: Switch with 2 sockets RJ-45

• Commercially available Ethernet cable available from specialist retailers

NOTE!

Use Category 5 or higher shielded cable for all Ethernet connections.

Interface DIGITAL (ZD)

Data is exchanged between the machine control and the Thermo-6 temperature control unit via the interface server. Gate-6

• Serial data 20 mA, RS-232 interface or RS-422/485

• Connection to Gate-6: 1 25-pin Sub-D socket

• ZD cable interface is available from your HB-Therm distributor (→ www.hb-therm.com)

Cable pin-assignment

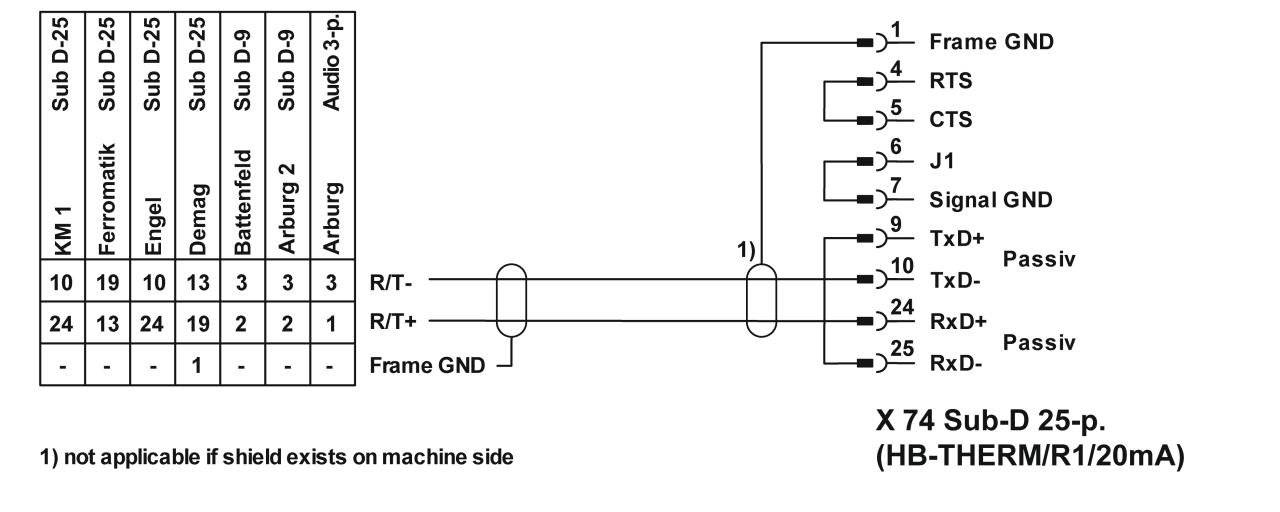

20 mA (current loop)

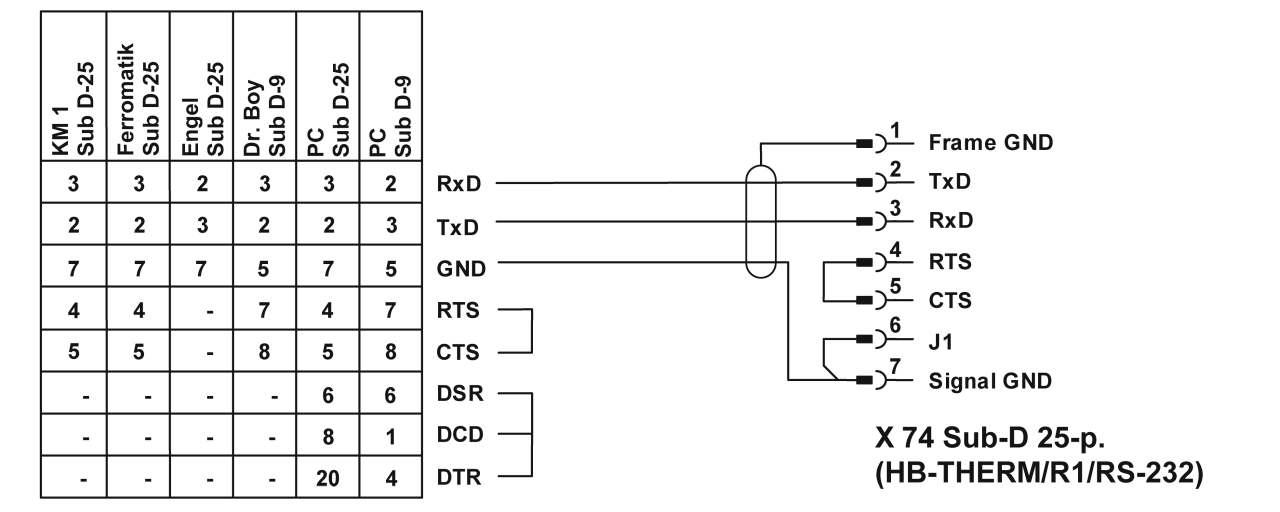

RS-232

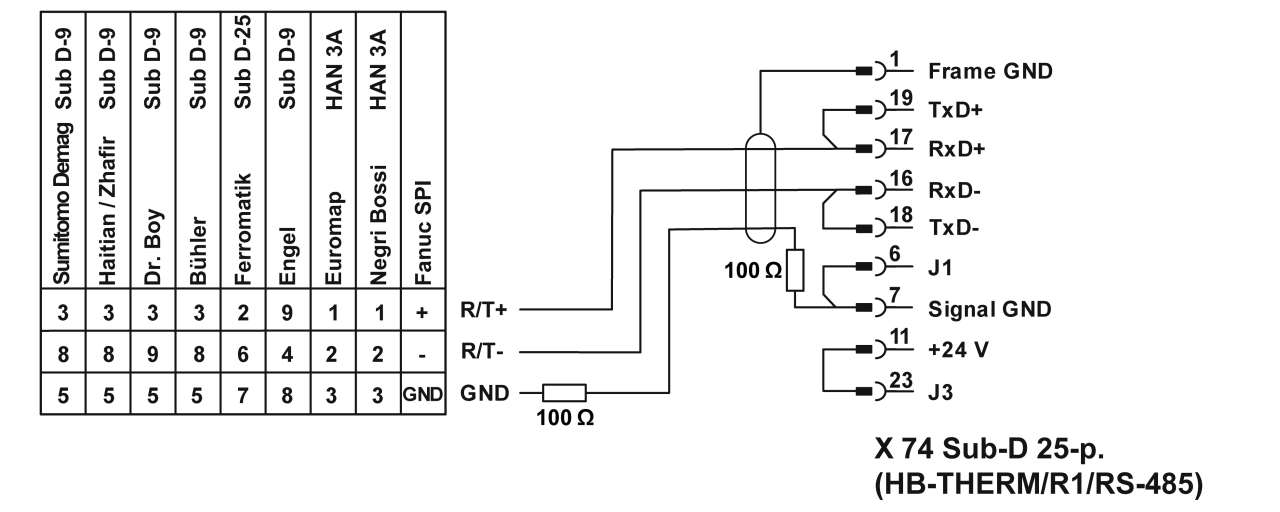

RS-485

RS-422 (jumper cable)

CAN (ZC) interface

Data is exchanged between the machine control and the Thermo-6 temperature control unit via the interface server. Gate-6

• Serial data CAN-BUS interface and CANopen
• Connection to Gate-6: 1 socket Sub-D 9 pin (female)
• ZD cable interface is available from your HB-Therm distributor (→ www.hb-therm.com)

Cable pin-assignment

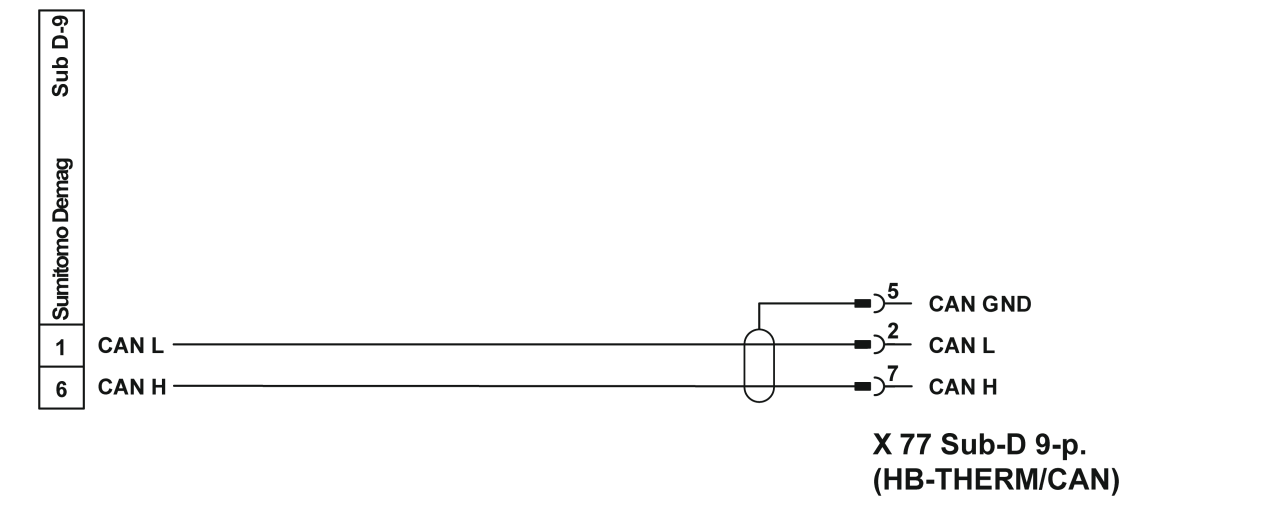

Adapter (only for Demag machines, T22590O/ID)

• DEMAG unit 1 with address 13
• Netstal unit 1 with address 31
