type

HB-100Z61

HB-140Z61

HB-160Z61

Temperature max.

100 °C

140 °C

160 °C

Circulating volume in unit (approx.)

1,4 L

Dimensions (Dimensions)

Height

510 mm

Width

190 mm

Depth

793 mm

Weight max.

55 kg

59 kg

59 kg

Environment

Temperature

5−40 °C

Relative humidity

35–85 RH(non-condensing)

Continuous sound pressure level

<70 dB(A)

Surface temperature
(back of the device )

>55 °C

Cleanroom capability

«At Rest» <ISO Classe 6 (Cl. 1 000)

«In Operation» ISO Classe 7 (Cl. 10 000)

temperature measurement

resolution

0,1 °C

Control accuracy

±0,1 °C

Tolerance

±0,8 °C

Flow rate measurement

measuring range

0,4–60 L/min

resolution

0,1 L/min

Tolerance

± (5% of measured value + 0,1 L/min)

Pressure measurement

measuring range

0–20 bar

resolution

0,1 bar

Tolerance

±5 %of rated value

pump pressure indicator

Tolerance

±10 %of rated value

Hydraulic connectionsclick here

Electrical connections

residual current circuit-breaker

NOTE!

We recommend using a type B residual current circuit breaker (RCD), as the temperature control units are equipped with a frequency converter. Type A RCD are not suitable. The leakage current is max. 5 mA per unit.

Mains cable to unit

3LPE, 4 m(in standard)

H07RN-F/H07BQ-F (CE)

SO/SOW/SOOW (UL/CSA)

cross-section

400/460 V, 8 kW: 4x2,5 mm2 (CE) / 4xAWG 12 (UL/CSA)

220 V, 8 kW: 4x6,0 mm2 (CE) / 4xAWG 10 (UL/CSA)

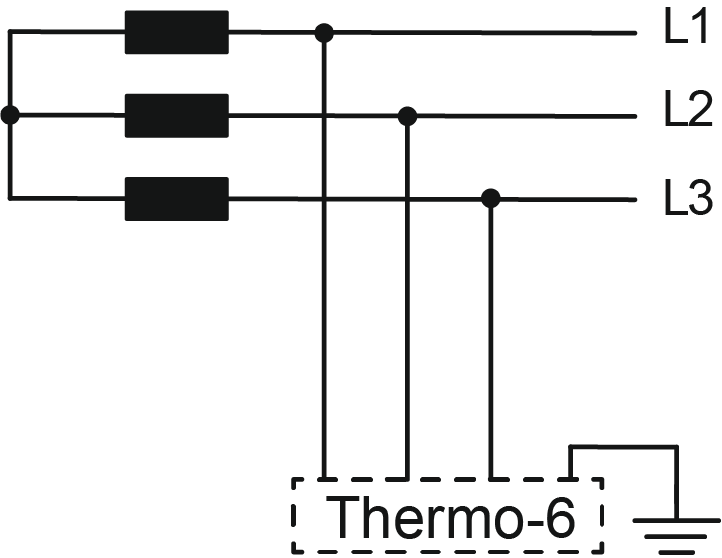

Network system

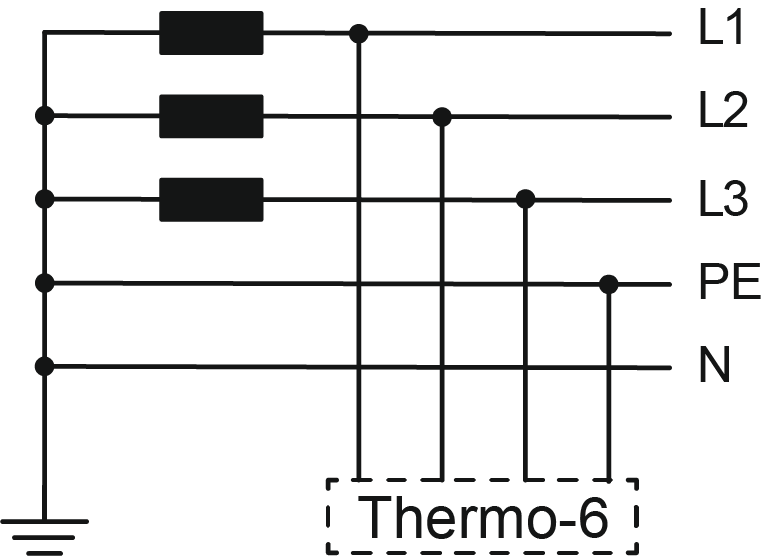

TN(net with protective conductor)

Mains voltagesee nameplate on the unit
maximum fusing
Rated short circuit current

6 kA


Overvoltage category

II

Degree of contamination

2

Protection class

IP 44
