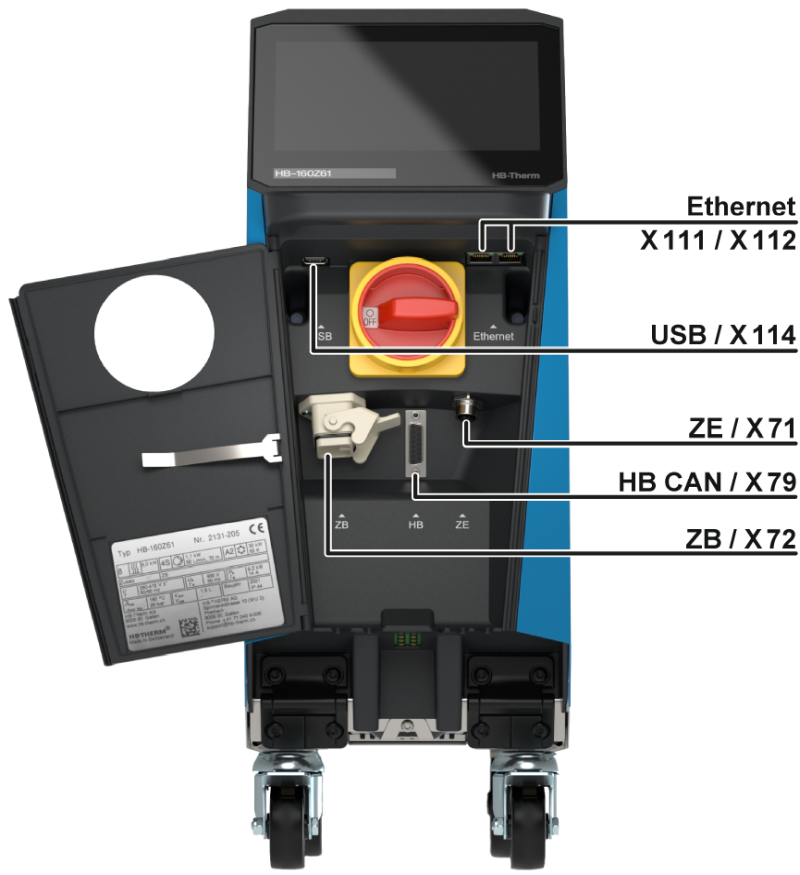

Thermo-6 Interfaces
Ethernet
The interface is the OPC UA server. A client is required for communication. This can be implemented in PC software (e.g. OPC UA Browser) or a machine control. Data is exchanged either directly between the machine control and the Thermo-6 temperature control unit or via the interface server. Gate-6
- Ethernet interface OPC UA (EUROMAP 82.1 Release 1.01 / OPC 40082-1)
- Switch with 2 sockets RJ-45
NOTE!
Shielded Category 5 or higher cable must be used for Ethernet connections. These cable are available from standard retailers.
USB
Connection for software updates and export/import of various unit data
- USB-A
NOTE!
Type A USB data carriers with FAT, FAT32, exFAT and ext2/3/4 formats are supported. These USB data carriers are available at standard retailers.
HB CAN intern
HB-Therm data interface CAN for connection of flow meters Flow-5 or to Power supply to the Gate-6 interface server.
- 1 15-pin Sub-D socket
- Interface cables can be found in the accessories catalogue

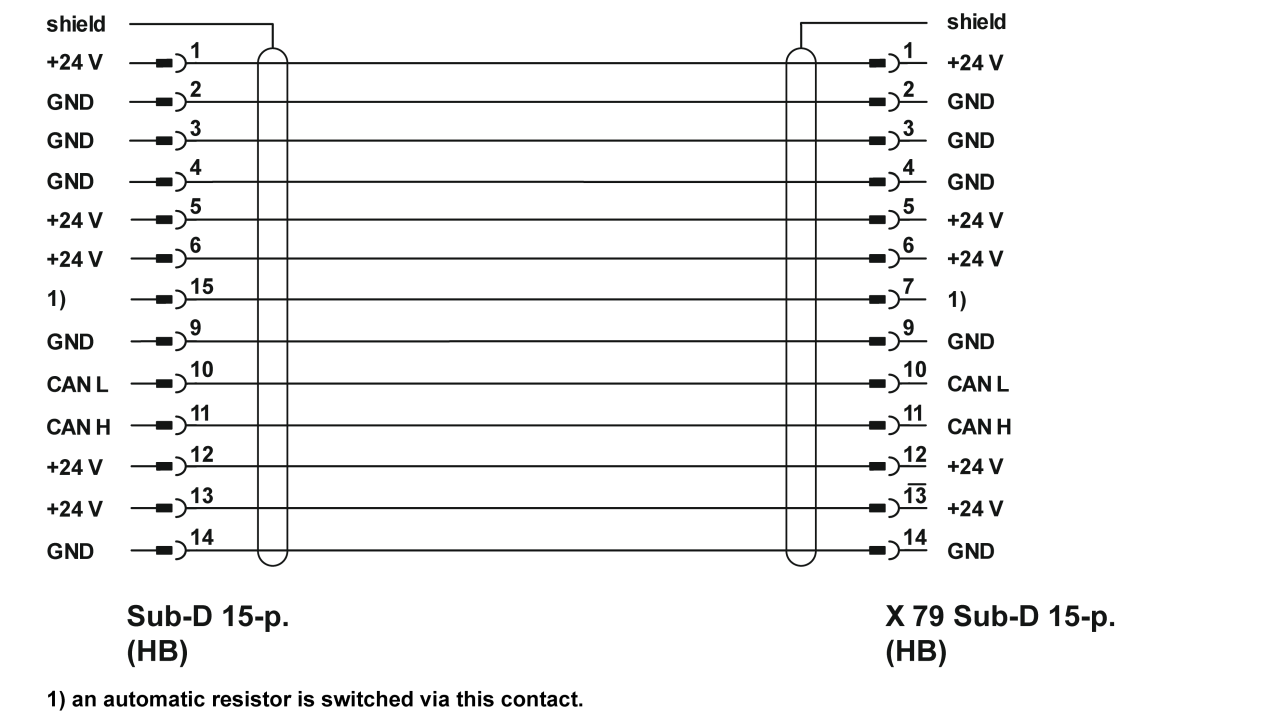

Cable pin-assignment
Alarm and external control (ZB)
The temperature control unit can be connected and controlled with the machine control system via potential-free contacts.
- 1 Harting Han 7D plug
- Cable for alarm contact and external control can be found in the accessories catalogue
Functions of the potential-free changeover contact:
- Read out the unit's alarm status
- Switch on and off the unit
- Switch between set values (Set temperature 1, Set temperature 2)

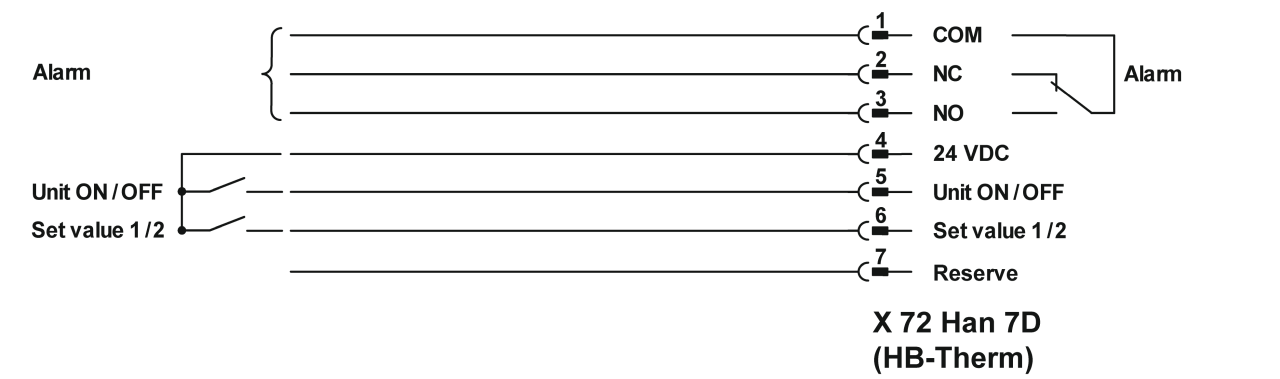

Cable pin-assignment
function | Contact | maximum load | |
---|---|---|---|
unit I/O | A | close (signal edge) | |
Off | open (signal edge) | ||
set temperature | 2 | close (signal edge) | |
1 | open (signal edge) | ||
alarm contact | - | - | 250 VAC, 4 A |
