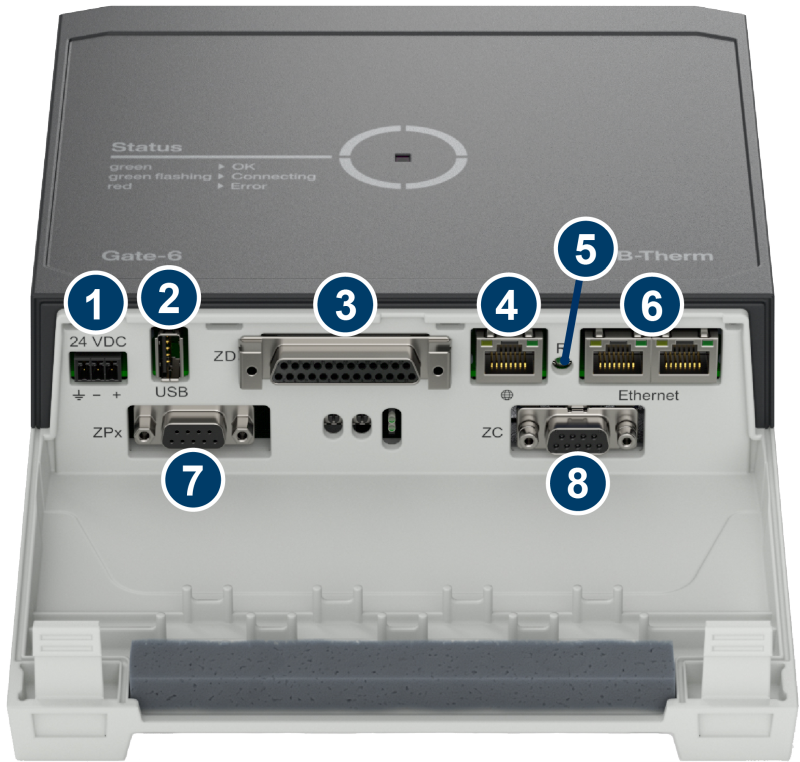

Gate-6 connections
1 | 24 VDC | Power supply 24 VDC +/-10% ('+' = 24 VDC; '-' = 0 VDC; ' |
2 | USB | For service purposes USB-A |
3 | ZD | Serial data interface 20 mA, RS-232, RS-422/485. Click here... 1 25-pin Sub-D socket |
4 |
| Ethernet ext.(Internet access) 1 socket RJ-45 |
5 | R | Reset button for service purposes (reset network setting) |
6 | Ethernet | interface OPC UA (EUROMAP 82.1, Release 1.01). To connection the temperature control units Thermo-6, up to 16 per Gate-6. Click here... Switch with 2 sockets RJ-45 |
7 | ZP | Serial data interface Profibus-DP. To connection the temperature control units, up to 4. Click here... 1 socket Sub-D 9 pin (female) |
8 | ZC | Serial data interface CAN-Bus / CANopen. Click here... 1 socket Sub-D 9 pin (female) |
