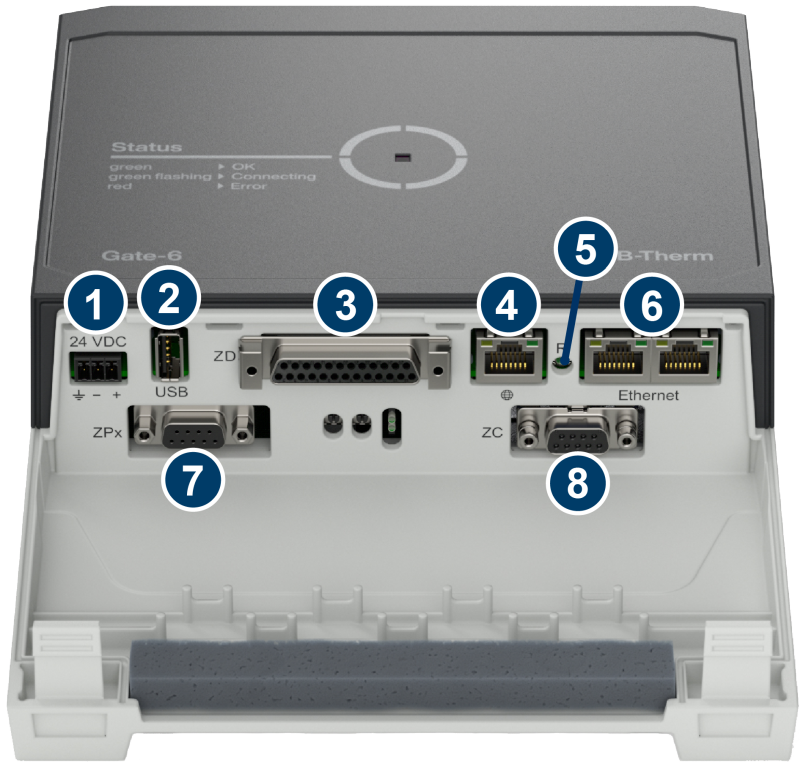

Gate-6 connections

Pos.	Marking	Description
1	24 VDC	Power supply 24 VDC +/-10% ('+' = 24 VDC; '-' = 0 VDC; '' = functional earth for EMC purposes)
2	USB	For service purposes USB-A
3	ZD	Serial data interface 20 mA, RS-232, RS-422/485→ click here... 1 25-pin Sub-D socket
4		Ethernet ext.(Internet access) 1 socket RJ-45
5	R	Reset button for service purposes (reset network setting)
6	Ethernet	Interface OPC UA (EUROMAP 82.1, Release 1.01)for connection Thermo-6 temperature control units (max. 16 per Gate-6) → Click here... Switch with 2 sockets RJ-45
7	ZP	Serial data interface Profibus-DPfor max. 4 temperature control units → click here... 1 socket Sub-D 9 pin (female)
8	ZC	Serial data interface CAN-Busand CANopen→ click here... 1 socket Sub-D 9 pin (female)
